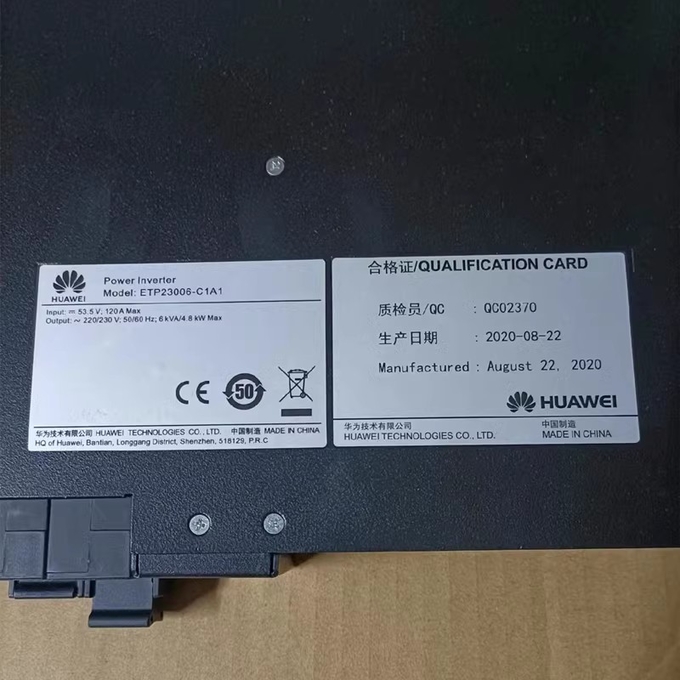

| Product Specifications | ETP23006-C1A1 |
| System | Dimension | 43.6mm*442mm*330mm |
| Weight | ≤15kg |
| Cooling Mode | Air cooling |
| Protection Level | IP20 |
| Output Capacity | 6kVA max |
| AC Input | Number of DC input channels | Three-phase compatible with single-phase Three-phase:147V~519V AC,single-phase:85V AC~300V AC Dual-live wire,input voltage:85V AC~300V AC |
| Current | 45~66Hz,rated frequency:50/60Hz |
| Voltage | 1*100A/3P MCB,1*125A/2P MCB |
| Under voltage alarm point | 45V |
| Overvoltage alarm point | 58V |
| Undervoltage protection point | Protection point: 42V, Recover45V |
| Overvoltage protection point | Protection point: 60V, Recover58V |
| DC Distribution | Number of AC output channels | 1*63A(Breaker) |
| Output Voltage | 220V AC±2% |
| Output Frequency | SOHz±1% |
| Output SPD | 30kA/30kA |
| Peak efficiency | ≥94% |
| Output power factor | 0.8 |
| Overload Capacity | 105% ≤ load ≤ 125% for more than 1 min 125% < load ≤ 150% for more than 5s 150% < load ≤200% for more than 1s |
| Output current peak coefficient | 3:01 |
| Output parallel function | Support output parallel machine |
| Communication Port | Communication Port | CAN |
| Protection Function | DC Input | Over-voltage,Under-voltage |
| AC Input | Overvoltage, undervoltage, overcurrent, overpower, short circuit protection |
| Temperature | Over temperature protection |
| Insulation Resistance | Insulation Resistance | Not less than 2M |
| Audio Noise | Audio Noise | <60 dB |
| Certification & Reference Standards | Certification & Reference Standards | CE passed TUV, CE certification and obtained CB certificate IEC/EN 62368, 60950, TLC, RoHS, Reach, WEEE |
| Environment | Operating Temperature | -40℃~+75℃(+55℃ derating) |
| Storage Temperature | -40℃~+75℃ |
| Operating Humidity | 5%~95% (non-condensing) |
| Altitude | 0-5000m When the altitude ranges from 2000 m to 5000 m, the operating temperature decreases by 1ºC for each additional 200 m |
